EX-PROOF ZIRHSIZ KABLO RAKORU, PİRİNÇ A2F - V6060

Ex metal kablo rakoru…

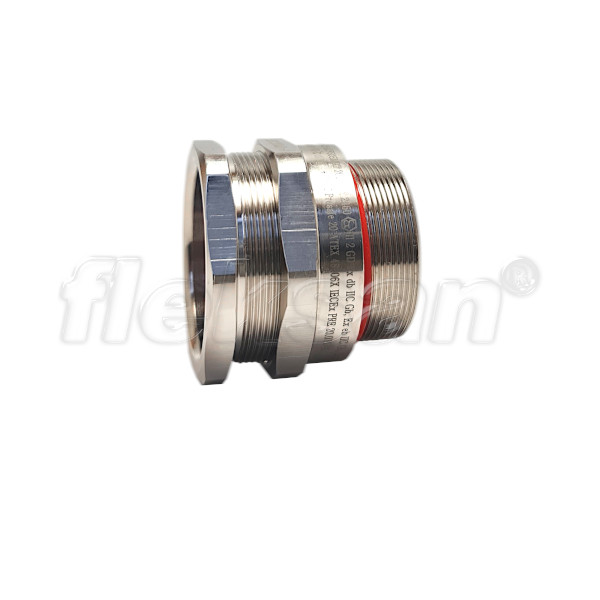

EX-PROOF ZIRHSIZ KABLO RAKORU, PİRİNÇ A2F
  • rain icon
    IP68
  • mintemperature icon
    -55
  • maxtemperature icon
    +160
  • rain icon
    CERT
  • PDF

Ex metal kablo rakoru…

materyal : pirinç
model : V6060


Pirinç malzeme üzeri nikel kaplamalı
Zırhsız kablolar için Ex-Proof sahalarda kullanıma uygun
Dış hava şartlarına, asitlere, yağlara karşı mükemmel dayanım
Silikon contalı
ATEX sertifikasına sahiptir
T6400 pirinç kilitleme somunu dahil değildir
Presafe 20 ATEX 48906X
Ex db IIC Gb; Ex eb IIC Gb; Ex tb IIIC Db, IP66/68

product drawing

Fleksan EX-PROOF ZIRHSIZ KABLO RAKORU, PİRİNÇ A2F fiyat listesi:

Ürün Kodu Ölçü I Ölçü II A
(mm)
B
(mm)
C
(mm)
D
(mm)
Paket Miktarı
(ad)
Net Ağırlık
(kg/ad)
Satış Fiyatı
(USD/ad)
V606419 M20x1.5 3.20 8.50 17.00 50.00 0,079 6.71
V606420 M20x1.5 6.20 11.60 17.00 50.00 0,072 6.11
V606421 M20x1.5 8.00 13.90 17.00 0,000 9.59
V606425 M25x1.5 11.20 19.60 17.00 30.00 0,125 11.55
V606432 M32x1.5 17.10 26.00 17.00 20.00 0,163 15.00
V606440 M40x1.5 23.60 31.60 17.00 16.00 0,222 20.74
V606450 M50x1.5 31.10 37.50 17.00 0,000 26.96
V606451 M50x1.5 35.70 43.10 17.00 12.00 0,290 26.96
V606463 M63x1.5 41.60 48.70 17.00 0,000 40.61
V606464 M63x1.5 47.30 55.20 17.00 8.00 0,451 40.61
V606475 M75x1.5 54.10 61.20 17.00 0,000 102.51
V606476 M75x1.5 61.20 67.20 17.00 0,000 102.51
V606490 M90x1.5 66.70 79.20 24.00 0,000 172.80
V606815 NPT 1/2” 3.20 8.50 20.00 0,000 8.71
V606816 NPT 1/2” 6.20 11.60 20.00 0,000 8.71
V606817 NPT 1/2” 8.00 13.90 20.00 0,000 9.59
V606821 NPT 3/4” 11.20 19.60 21.00 0,000 16.55
V606826 NPT 1” 17.10 26.00 26.00 0,000 18.63
V606835 NPT 1 1/4” 23.60 31.60 26.00 0,000 23.48
V606840 NPT 1 1/2” 31.10 37.50 26.00 0,000 35.98
V606852 NPT 2” 35.70 43.10 27.00 0,000 55.36
V606853 NPT 2” 41.60 48.70 27.00 0,000 55.36
V606863 NPT 2 1/2” 47.30 55.20 40.00 0,000 102.51
V606864 NPT 2 1/2” 54.10 61.20 40.00 0,000 102.51
V606878 NPT 3” 61.20 67.20 42.00 0,000 151.00
