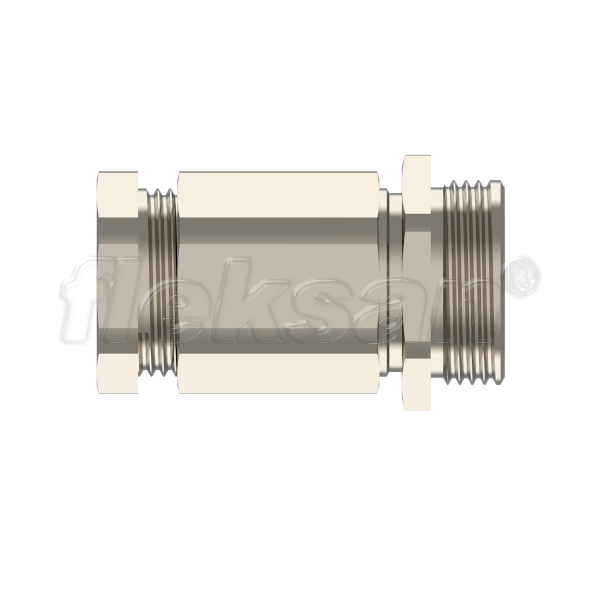

Armoured Cable Gland
material : brass
model : T6140
Brass nickel plated core and cover
Liquid-tight gland for armoured cables
Inside : PA6 clamping insert and CR seal
With CR O-ring
High corrosion protection
High vibration and traction resistance
High quality strain relief and sealing
Without T6400 brass locknut
| Product Code | Size I | Size II | A (mm) |
B (mm) |
C (mm) |
D (mm) |
In Pack (pc) |
Net Weight (kg/pc) |
Unit Price (USD/pc) |
||||
| T614408 | M16x1.5 | 8.00 | 15.00 | 9.00 | 0,000 | 22.65 | |||||||
| T614412 | M20x1.5 | 8.00 | 15.00 | 9.00 | 0,000 | 22.65 | |||||||
| T614413 | M20x1.5 | 13.50 | 21.00 | 9.00 | 0,000 | 23.70 | |||||||
| T614416 | M25x1.5 | 8.00 | 15.00 | 9.00 | 0,000 | 28.50 | |||||||
| T614417 | M25x1.5 | 13.50 | 21.00 | 9.00 | 0,000 | 33.00 | |||||||
| T614418 | M25x1.5 | 18.00 | 27.00 | 9.00 | 0,000 | 53.70 | |||||||
| T614422 | M32x1.5 | 18.00 | 27.00 | 9.00 | 0,000 | 57.00 | |||||||
| T614423 | M32x1.5 | 23.00 | 33.00 | 9.00 | 0,000 | 64.20 | |||||||
| T614429 | M40x1.5 | 29.00 | 40.00 | 9.00 | 0,000 | 87.75 | |||||||
| T614435 | M50x1.5 | 35.00 | 48.00 | 9.00 | 0,000 | 132.00 | |||||||
| T614436 | M50x1.5 | 42.00 | 56.00 | 9.00 | 0,000 | 207.00 | |||||||
| T614452 | M63x1.5 | 42.00 | 56.00 | 9.00 | 0,000 | 216.00 | |||||||
| T614453 | M63x1.5 | 53.00 | 66.00 | 9.00 | 0,000 | 315.00 | |||||||
| T614462 | M75x1.5 | 53.00 | 66.00 | 9.00 | 0,000 | 606.00 | |||||||
| T614463 | M75x1.5 | 63.00 | 75.00 | 9.00 | 0,000 | 756.00 |
